Parker DSM / DMM / DPM Series

Parker DSM / DMM / DPM Series

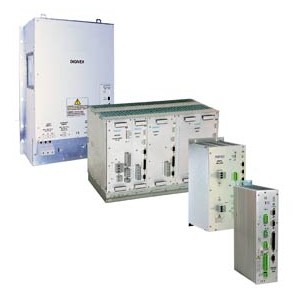

The DIGIVEX motion servo drives integrate in one compact unit the functions of speed controller, motion controller and PLC as well as powerful CANopen or PROFIBUS network possibilities.

The DIGIVEX motion have the same electrical characteristics as the DIGIVEX Drive and are available in single or multi axes version.

Key Features

  • Complete positioning drive
  • Integrated PLC and motion program
  • Real time multi-tasking structure
  • Direct 230Vac and 400Vac power supply
  • Single and multi-axes version
  • Integrated or regenerative braking
  • Posivex® absolute encoder compatible
  • CANopen and PROFIBUS fieldbus

Range

Type Output current Structure Control
DSx* 2 to 60 A Single-axis Position
DMx* 2 to 32 A Multi-axes Position
DPx* 50 to 300 A Single-axis Position

Technical Specifications

Power supply 230Vac ±10%, single phase or three phase,
400Vac ±10%, three phase ; 50/60Hz
Ambient 0-40°C (derate by 20% per 10°C to 60°C max).
Altitude 1000m (derate by 1% per 100m to 4000m max.)
Braking DSM: Integrated or external resistor
DMM: Integrated or external resistor or regenerative
DPM: Regenerative
Inputs / Outputs 1- Analogue input (14 bits ; ±10V diff.)
1- Analogue output (±10V), free assignment
16- Opto-isolated digital inputs (from which 4 interruptive inputs), free assignment
8- Opto-isolated digital inputs, free assignment
Resolver input
Posivex®
Absolute encoder input
Incremental encoder input; SinCos
Incremental encoder emulation output
230Vac or 400Vac auxiliary supply
Fieldbus CANopen (DS 301 and DSP 402)
PROFIBUS (DP-V0 and DP-V1; PROFIdrive V2.0 and PROFIdrive V3.0 Class 3 and 4)

Dimensions

Type H (mm) W (mm) D (mm)
DSM rating
2.4 and 7.5 A 328 78 222
8 and 15 A 328 109.5 222
16 A 328 133 222
30 A 328 133 226
32 A 328 168 226
60 A 328 168 235
DMM rack
DRA3165 303 315 270
DRA3168 - 6 axes 303 483 270
DRA3128 - 13 axes 597 483 271
DPM rating
50 A 438 202 244
100 and 150 A 474 483 343
200 A and 300 A 878 540 343
