Parker SSD 514 Series (4Q)

Parker 514 Series (2Q)

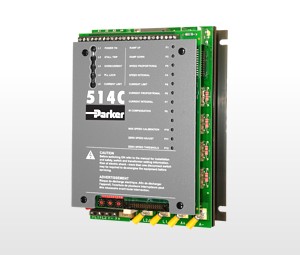

The regenerative 514C DC thyristor drive offers full four quadrant control of DC motors from single phase supplies. As such it is ideal for applications involving overhauling loads or where rapid and accurate deceleration is required. Together with the non-regenerative 512C they offer the perfect solution for lower power single motor and multi-drive applications.

Typical applications include

  • Machine tool spindles
  • Wire drawing machines
  • Winders/Reelers

Features

  • Four quadrant regenerative control
  • 110...500 VAC AC supply selection by jumpers
  • CE marked and EMC compliant
  • AC power contactor logic and supply
  • Many system features
  • Extremely linear control loops

User Facilities

  • Four quafrant regenerative control
  • Seperate AC auxiliary supply
  • AC supply contactor logic
  • Torque or speed control
  • Three setpoint and torque limit inputs
  • Buffered analogue current output (10 V, 10 mA)
  • +10 V and -10 V analogue reference supplies
  • +24 V digital reference supply
  • Drive healthy output
  • Buffered speed & ramp output (10 V, 10 mA)
  • Buffered total setpoint output (10 V, 10 mA)
  • Zero speed / zero setpoint output

Potentiometer Adjustments

  • Maximum speed / Current limit
  • Acceleration time and Deceleration time (0...40 s)
  • IR Compensation
  • Speed loop gain - proportional and integral
  • Current gain - proportional and integral
  • Zero speed offset or threshold

Standards

  • CE Marked to EN50178 (Safety, Low Voltage Directive)
  • CE Marked to EN61800-3 (EMC Directive) with external filter
  • NRTL Listed to US Standard UL508C
  • NRTL listed to Canadian standard C22.2#14

Dimensions

Type A B C D E Weight (kg)
514C-04, -08 160 240 90 148 210 1.6
514C-16, -32 160 240 130 148 210 3.0

Technical Characteristics

Type A B C D E Weight (kg)
514C-04, -08 160 240 90 148 210 1.6
514C-16, -32 160 240 130 148 210 3
Supply Voltage [VAC] Armature Voltage [VDC] Field Voltage [VDC]
110 80 100
240 180 210
415-500 320 360
Order Code Armature Current [ADC]
514C-04-00-00 4
514C-08-00-00 8
514C-16-00-00 16
514C-32-00-00 32
