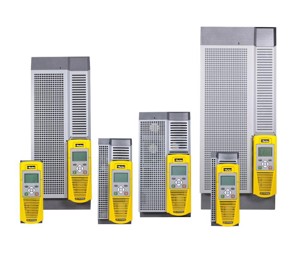

Parker SSD AC30 Series
The AC30 series V/Hz (sensorless vector) drives provide exceptional levels of control for pump, fan and general purpose applications.
The IP 20 protected modular construction of the drive enables a wide range of comms and I/O modules to be easily added as required.
For use in environmental class 3C3 and 3C4 for H2S (at concentration of 25ppm for 1200 hours) as standard. The AC30 series drives also comply with RoHS substance restrictions in accordance with EC Directive 2011/65/EU.
Key Features
- Ambient 0-40deg.C Normal Duty / 0-45deg.C Heavy Duty
- Suitable for operation with AC induction and Permanent Magnet AC (PMAC) servo motors
- Optional integrated EMC filter to C2 1st environment and DC choke to reduce harmonics
- Ethernet TCP/IP as standard
- I/O expansion options
- Chassis or through-panel mount as standard
- Multi-language graphical keypad option
- Quick start wizards
Power Ratings
| Order Code |
Normal Duty Ratings
110% O/load for 60secs |
Heavy Duty Ratings
150% O/load for 60secs. |
Frame |
| kW |
Output Amps |
kW |
Output Amps |
| 400Vac |
480Vac |
400Vac |
480Vac |
| Power Supply: 380-480Vac (±10%) 3 phase 45-65HZ |
| 31V-4D0004-B… |
1.1 |
3.5 |
3.0 |
0.75 |
2.5 |
2.1 |
D |
| 31V-4D0005-B… |
1.5 |
4.5 |
3.4 |
1.1 |
3.5 |
3.0 |
D |
| 31V-4D0006-B… |
2.2 |
5.5 |
4.8 |
1.5 |
4.5 |
3.4 |
D |
| 31V-4D0008-B… |
3 |
7.5 |
5.8 |
2.2 |
5.5 |
4.8 |
D |
| 31V-4D0010-B… |
4 |
10 |
7.6 |
3 |
7.5 |
5.8 |
D |
| 31V-4D0012-B… |
5.5 |
12 |
11 |
4 |
10 |
7.6 |
D |
| 31V-4E0016-B… |
7.5 |
16 |
14 |
5.5 |
12 |
11 |
E |
| 31V-4E0023-B… |
11 |
23 |
21 |
7.5 |
16 |
14 |
E |
| 31V-4F0032-B… |
15 |
32 |
27 |
11 |
23 |
21 |
F |
| 31V-4F0038-B… |
18 |
38 |
36 |
15 |
32 |
27 |
F |
| 31V-4G0045-B… |
22 |
45 |
40 |
18 |
38 |
36 |
G |
| 31V-4G0060-B… |
30 |
60 |
52 |
22 |
45 |
40 |
G |
| 31V-4G0073-B… |
37 |
73 |
65 |
30 |
60 |
52 |
G |
| 31V-4H0087-B… |
45 |
87 |
77 |
37 |
73 |
65 |
H |
| 31V-4H0105-B… |
55 |
105 |
96 |
45 |
87 |
77 |
H |
| 31V-4H0145-B… |
75 |
145 |
124 |
55 |
105 |
96 |
H |
| 31V-4J0180-B… |
90 |
180 |
156 |
75 |
145 |
124 |
J |
| 31V-4J0205-B… |
110 |
205 |
180 |
90 |
180 |
156 |
J |
| 31V-4J0260-B… |
132 |
260 |
240 |
110 |
205 |
180 |
J |
| 31V-4K0380-B… |
200** |
380 |
361 |
160** |
315 |
302 |
K |
| 31V-4K0440-B… |
250** |
440 |
414 |
200** |
380 |
361 |
K |
** Available in 2015 - Release date(s) to be advised
