3-Phase TEC IE2 High Efficiency

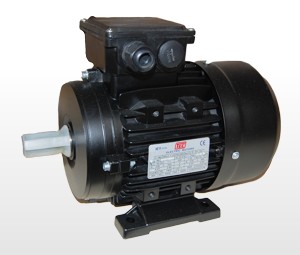

3-Phase TEC Motors

Stock Motors: We have available from stock a range of TEC motors.

Modified Motors: We are able to modify stock motors to provide fast delivery of motors requiring:

  • Different mounting arrangements
  • Increased protection
  • Special shaft, paint finish or bearings
  • Thermistors
  • Thermostats
  • Anti-condensation heaters
  • Brake
  • Force ventilation
  • Encoder
  • Resolver

Standard Motor Specification

  • Insulation: Class F
  • Rating: Motors are designed for Class B temperature rise at listed rated output
  • Efficiency: IE2 (where applicable)
  • Altitude: Motors are suitable for operation at listed rated outputs up to 1000 metres above sea level
  • Ambient: Suitable for operation at listed outputs between -20°C and +40°C
  • Protection: IP.55
  • Voltage: Up to 2.2kW inclusive - 230V Delta/400V Star 3ph. 50Hz. From 3kW inclusive - 400V Delta/690V Star 3ph. 50Hz

Ratings & Dimensions

2-Pole (3000rpm) at 50Hz

Voltage Frame Power Output Speed RMP Rated Amps at 230Volts Rated Amps at 400Volts
kW HP
230/400 Volts Aluminium TECA 561-2 0.09 0.15 2750 0.62 0.36
TECA 562-2 0.12 0.2 2750 0.69 0.40
TECA 631-2 0.18 0.25 2720 0.95 0.55
TECA 632-2 0.25 0.33 2720 1.23 0.71
TECA 721-2 0.37 0.5 2740 1.67 0.97
TECA 712-2 0.55 0.75 2740 2.45 1.42
TECA2-80 0.75 1 2870 3.07 1.75
TECA2-80 1.1 1.5 2870 4.24 2.42
TECA2-90S 1.5 2 2890 5.61 3.20
TECA2-90L 2.2 3 2890 7.96 4.54
TECA2-100L 3 4 2890 10.31 5.88
400/690 Volts TECA2-112M 4 5.5 2900   7.54
TECA2-132S 5.5 7.5 2930   10.20
TECA2-132S 7.5 10 2930   13.80
TECA2-160M 11 15 2940   19.90
TECA2-160M 15 20 2940   26.90
TECA2-160L 18.5 25 2940   32.60
TECA2-180M 22 30 2940   38.60
TECA2-200L 30 40 2960   52.30
TECA2-200L 37 50 2960   64.10
Cast Iron TECC2-225M 45 60 2960   79.44
TECC2-250M 55 75 2970   96.80
TECC2-280S 75 100 2970   125.45
TECC2-280M 90 125 2970   150.06
TECC2-315S 110 150 2980   187.08

4-Pole (1500rpm) at 50Hz

Voltage Frame Power Output Speed RPM Rated Amps at 230Volts Rated Amps at 400Volts
kW HP
230/400 Volts Aluminium TECA 561-4 0.06 0.08 1325 0.61 0.35
TECA 562-4 0.09 0.12 1325 0.78 0.45
TECA 631-4 0.12 0.16 1310 0.95 0.55
TECA 632-4 0.18 0.25 1310 1.21 0.70
TECA 711-4 0.25 0.33 1330 1.45 0.84
TECA 712-4 0.37 0.5 1330 1.92 1.11
TECA 801-4 0.55 0.75 1390 2.74 1.58
TECA2-80 0.75 1 1430 3.14 1.79
TECA2-90S 1.1 1.5 1430 4.38 2.50
TECA2-90L 1.5 2 1430 5.80 3.31
TECA2-100L 2.2 3 1440 8.47 4.83
400/690 Volts TECA2-100L 3 4 1440   6.33
TECA2-112M 4 5.5 1450   8.23
TECA2-132S 5.5 7.5 1460   10.90
TECA2-132M 7.5 10 1460   14.50
TECA2-160M 11 15 1470   21.60
TECA2-160L 15 20 1470   28.40
TECA2-180M 18.5 25 1470   34.40
TECA2-180L 22 30 1470   40.30
TECA2-200L 30 40 1470   55.20
Cast Iron TECC2-225S 37 50 1480   72.02
TECC2-225M 45 60 1475   87.21
TECC2-250M 55 75 1475   96.49
TECC2-280S 75 100 1480   126.56
TECC2-280M 90 125 1480   149.90
TECC2-315S 110 150 1485   186.69

6-Pole (1000rpm) at 50Hz

Voltage Frame Power Output Speed RPM Rated Amps at 230Volts Rated Amps at 400Volts
kW HP
230/400 Volts Aluminium TECA 631-6 0.09 0.15 840 0.88 0.51
TECA 632-6 0.12 0.2 850 1.08 0.62
TECA 711-6 0.18 0.25 850 1.22 0.70
TECA 712-6 0.25 0.33 850 2.20 1.27
TECA 801-6 0.37 0.5 885 2.12 1.23
TECA 802-6 0.55 0.75 885 2.85 1.65
TECA2-90S 0.75 1 920 3.52 2.01
TECA2-90L 1.1 1.5 920 4.94 2.82
TECA2-100L 1.5 2 940 6.50 3.71
TECA2-112M 2.2 3 960 9.07 5.17
TECA2-132S 3 4 960 12.00 6.84
400/690 Volts TECA2-132M 4 5.5 960   8.86
TECA2-132M 5.5 7.5 960   12.00
TECA2-160M 7.5 10 970   16.10
TECA2-160L 11 15 970   22.90
TECA2-180L 15 20 970   28.90
TECA2-200L 18.5 25 970   35.60
TECA2-200L 22 30 970   41.60
Cast Iron TECC2-225M 30 40 980   55.56
TECC2-250M 37 50 985   69.79
TECC2-280S 45 60 980   81.48
TECC2-280M 55 75 980   99.15
TECC2-315S 75 100 990   129.81

TECA2/TECC2 nomenclature indicates an IE2 efficiency motor.

Although we endeavour to keep technical data current and up-to-date, please note that all technical data is subject to alteration without prior notice. Always consult the motor nameplate for technical information.
