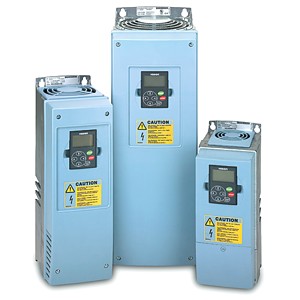

Vacon NXL
The Vacon NXL is a powerful, multipurpose AC drive for industrial and residential purposes in the power range from 0.75kW to 30 kW.
The space-saving bookshelf design with high protection classes, versatile control and programming capabilities gives a solution for all operating environments.
Installation, connection and commissioning procedures are extremely quick and convenient with instructions attached to the unit.
Key Features
- Units can be installed on the wall without additional cabinets because of high protection classes
- RFI filters and Brake Choppers fitted as standard
- Integrated AC choke to give protection from overvoltage spikes and reduce stress on supply transformers, cables and fuses
- IP.21 & IP.54 protected units available
- Compact Bookcase design
- RS-485/Modbus as standard
- Range of fieldbuses with OPT-C-type boards
Ratings & Dimensions
380-500Volt 3ph Supply, EMC Level H
| Type |
High OverLoad (1.5 x Amps)* |
Low OverLoad (1.1 x Amps)* |
Dimensions WxHxD mm |
Protection |
| kW |
Amps |
kW |
Amps |
| NXL00035C2H1SSS |
0.75 |
2.2 |
1.1 |
3.3 |
128 x 292 x 190 |
IP.21 |
| NXL00045C2H1SSS |
1.1 |
3.3 |
1.5 |
4.3 |
128 x 292 x 190 |
IP.21 |
| NXL00055C2H1SSS |
1.5 |
4.3 |
2.2 |
5.6 |
128 x 292 x 190 |
IP.21 |
| NXL00075C2H1SSS |
2.2 |
5.6 |
3 |
7.6 |
128 x 292 x 190 |
IP.21 |
| NXL00095C2H1SSS |
3 |
7.6 |
4 |
9 |
128 x 292 x 190 |
IP.21 |
| NXL00125C2H1SSS |
4 |
9 |
5.5 |
12 |
128 x 292 x 190 |
IP.21 |
| NXL00165C2H1SSS |
5.5 |
12 |
7.5 |
16 |
144 x 391 x 214 |
IP.21 |
| NXL00235C2H1SSS |
7.5 |
16 |
11 |
23 |
144 x 391 x 214 |
IP.21 |
| NXL00315C2H1SSS |
11 |
23 |
15 |
31 |
144 x 391 x 214 |
IP.21 |
| NXL00385C2H1SSS |
15 |
31 |
18.5 |
38 |
195 x 519 x 237 |
IP.21 |
| NXL00465C2H1SSS |
18.5 |
38 |
22 |
46 |
195 x 519 x 237 |
IP.21 |
| NXL00615C2H1SSS |
22 |
46 |
30 |
61 |
195 x 519 x 237 |
IP.21 |
| NXL00035C5H1SSS |
0.75 |
2.2 |
1.1 |
3.3 |
128 x 292 x 190 |
IP.54 |
| NXL00045C5H1SSS |
1.1 |
3.3 |
1.5 |
4.3 |
128 x 292 x 190 |
IP.54 |
| NXL00055C5H1SSS |
1.5 |
4.3 |
2.2 |
5.6 |
128 x 292 x 190 |
IP.54 |
| NXL00075C5H1SSS |
2.2 |
5.6 |
3 |
7.6 |
128 x 292 x 190 |
IP.54 |
| NXL00095C5H1SSS |
3 |
7.6 |
4 |
9 |
128 x 292 x 190 |
IP.54 |
| NXL00125C5H1SSS |
4 |
9 |
5.5 |
12 |
128 x 292 x 190 |
IP.54 |
| NXL00165C5H1SSS |
5.5 |
12 |
7.5 |
16 |
144 x 391 x 214 |
IP.54 |
| NXL00235C5H1SSS |
7.5 |
16 |
11 |
23 |
144 x 391 x 214 |
IP.54 |
| NXL00315C5H1SSS |
11 |
23 |
15 |
31 |
144 x 391 x 214 |
IP.54 |
| NXL00385C5H1SSS |
15 |
31 |
18.5 |
38 |
195 x 519 x 237 |
IP.54 |
| NXL00465C5H1SSS |
18.5 |
38 |
22 |
46 |
195 x 519 x 237 |
IP.54 |
| NXL00615C5H1SSS |
22 |
46 |
30 |
61 |
195 x 519 x 237 |
IP.54 |
*kW and Amps at 400Volts
