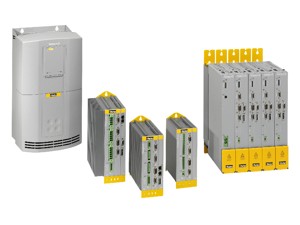

Parker Compax3 Series

Parker Compax3 Series

With its high performance and modular design, the Compax3 family of industrial servo drives and drive/controllers offers a new level of servo performance and flexibility.

The modular structure of the Compax3 family allows options such as intelligent motion controllers, communication interfaces and industry standard motor feedback. In addition, numerous expansion options can be added to the standard product in order to optimize the capabilities required for today’s demanding servo applications.

The family is offered in two variations: standalone (C3S and C3H) and a DC bussed multi-axis version (C3M).

Compax3 Common Features

  • Available in both 120/240 VAC and 480 VAC input versions
  • Integrated safety: Compliant to EN954-1 Category 3 safety
  • Current output from 2.5 A (rms) continuous to 155 A (rms) continuous
  • Flexible communication options including: ETHERNET Powerlink, EtherCAT, DeviceNet, CANopen, Profibus, TCP/IP, RS-232 (3-wire), or RS-485 (2- or 4-wire)
  • Easy-to-use wizards-based configuration and programming via C3 ServoManager™ software package
  • Flexible feedback options including: resolver, incremental encoder, Heidenhain Endat 2.1 (single/multi-turn), Stegmann Hiperface™ (single/multi-turn), SinCos® high-resolution, hall-only
  • Internal regeneration circuitry; external resistor connections for additional power dissipation
  • Full diagnostic, tuning and 4-channel oscilloscope tools provided in the standard C3 ServoManager™ software
  • Software input simulation
  • Auto-load identification (auto-tuning)
  • CE (EMC & LVD), UL and cUL recognized
