3-Phase Brook Crompton IE2 High Efficiency

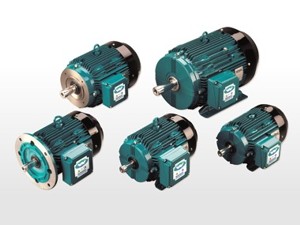

3-Phase Brook Motors

Stock Motors: We have available from stock a range of Brook Crompton motors.

Modified Motors: We are able to modify stock motors to provide fast delivery of motors requiring different mounting arrangement, increased protection, special shaft, special paint finish, special bearings, thermistors, thermostats, anti-condensation heaters, brake, force ventilation, encoder, resolver.

Standard Motor Specification

  • Insulation: Class F
  • Rating: Motors are designed for Class B temperature rise at listed rated output.
  • Efficiency: IE2 (where applicable)
  • Altitude: Motors are suitable for operation at listed rated outputs up to 1000 metres above sea level.
  • Ambient: Suitable for operation at listed outputs between -20°C and +40°C.
  • Protection: IP.55
  • Voltage: Up to 2.2kW inclusive - 230V Delta/400V Star 3ph. 50Hz. From 3kW inclusive - 400V Delta/690V Star 3ph. 50Hz

Ratings & Dimensions

2-Pole (3000rpm)

Voltage Frame Power Output Speed RPM Rated Amps at 230Volts Rated Amps at 400Volts
kW HP
230/400 Volts Aluminium B-DA56MA 0.09 0.15 2750 0.52 0.30
B-DA56MB 0.12 0.2 2750 0.62 0.36
B-DA63MA 0.18 0.25 2720 0.87 0.50
B-DA63MB 0.25 0.33 2720 1.14 0.66
B-DA71MA 0.37 0.5 2740 1.62 0.94
B-DA71MB 0.55 0.75 2740 2.30 1.33
A-DA80MA 0.75 1 2870 2.93 1.69
A-DA80MB 1.1 1.5 2870 4.18 2.40
A-DA90SA 1.5 2 2890 5.45 3.13
A-DA90LA 2.2 3 2890 7.81 4.49
A-D100LA 3 4 2890 10.20 5.88
400/690 Volts A-DA112MA 4 5.5 2900   7.65
A-DA132SA 5.5 7.5 2930   10.40
A-DA132SB 7.5 10 2930   14.00
A-DA160MA 11 15 2940   20.00
A-DA160MB 15 20 2940   26.90
A-DA160LA 18.5 25 2940   33.00
Cast Iron A-DF180MA 22 30 2940   38.60
A-DF200LA 30 40 2960   52.30
A-DF200LB 37 50 2960   63.40
AU-DF225M 45 60 2960   77.70
AU-DF250M 55 75 2970   94.60
AU-DF280S 75 100 2970   127.00
AU-DF280MA 90 125 2970   152.00
AU-DF315SA 110 150 2980   185.00

4-Pole (1500rpm) at 50Hz

Voltage Frame Power Output Speed RPM Rated Amps at 230Volts Rated Amps at 400Volts
kW HP
230/400 Volts Aluminium B-DA56MA 0.06 0.08 1325 0.46 0.27
B-DA56MB 0.09 0.12 1325 0.64 0.37
B-DA63MA 0.12 0.16 1310 0.73 0.42
B-DA63MB 0.18 0.25 1310 1.02 0.59
B-DA71MA 0.25 0.33 1330 1.30 0.75
B-DA71MB 0.37 0.5 1330 1.85 1.06
B-DA80MA 0.55 0.75 1390 2.59 1.49
A-DA80MB 0.75 1 1430 3.15 1.81
A-DA90SA 1.1 1.5 1430 4.41 2.53
A-DA90LA 1.5 2 1430 5.76 3.31
A-DA100LA 2.2 3 1440 8.09 4.65
400/690 Volts A-DA100LB 3 4 1440 10.70 6.18
A-DA112MA 4 5.5 1450   8.13
A-DA132SA 5.5 7.5 1460   10.90
A-DA132MA 7.5 10 1460   14.50
A-DA160MA 11 15 1470   21.00
A-DA160LA 15 20 1470   28.40
Cast Iron A-DF180MA 18.5 25 1470   34.00
A-DF180LA 22 30 1470   39.80
A-DF200L 30 40 1470   53.90
A-DF225S 37 50 1480   66.20
AU-DF225M 45 60 1475   80.20
AU-DF250MA 55 75 1475   97.60
AU-DF280S 75 100 1480   132.00
AU-DF280MA 90 125 1480   159.00
AU-DF315S 110 150 1485   189.00

6-Pole (1000rpm) at 50Hz

Voltage Frame Power Output Speed RPM Rated Amps at 230Volts Rated Amps at 400Volts
kW HP
230/400 Volts Aluminium B-DA63MA 0.09 0.15 840 0.85 0.49
B-DA63MB 0.12 0.2 850 1.04 0.60
B-DA71MA 0.18 0.25 850 1.21 0.70
B-DA71MB 0.25 0.33 850 1.56 0.90
B-DA80MA 0.37 0.5 885 2.13 1.23
B-DA80MB 0.55 0.75 885 2.93 1.69
A-DA90SA 0.75 1 920 3.45 1.98
A-DA90LA 1.1 1.5 920 4.84 2.78
A-DA100LA 1.5 2 940 6.29 3.62
A-DA112MA 2.2 3 960 8.88 5.11
A-DA132SA 3 4 960 11.90 6.84
400/690 Volts A-DA132MA 4 5.5 960   8.96
A-DA132MB 5.5 7.5 960   12.00
A-DA160MA 7.5 10 970   15.90
A-DA160LA 11 15 970   22.70
Cast Iron A-DF180LA 15 20 970   29.40
A-DF200LA 18.5 25 970   36.50
A-DF200LB 22 30 970   43.10
AU-DF225M 30 40 980   56.20
AU-DF250M 37 50 985   68.10
AU-DF280S 45 60 980   81.50
AU-DF280MA 55 75 980   99.20
AU-DF315SA 75 100 990   134.00

A/AU-DF frame nomenclature indicates an IE2 efficiency motor.

Although we endeavour to keep technical data current and up-to-date, please note that all technical data is subject to alteration without prior notice. Always consult the motor nameplate for technical information.
