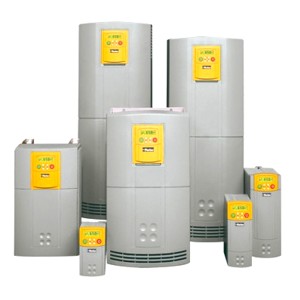

Parker SSD AC650V Series

Parker SSD AC650V Series

The AC650V is a programmable sensorless vector drive providing improved motor control of induction motors up to 110kW. The drive comes with built-in macros that enable quick setup of frequently encountered applications.

Key Features

  • Units suitable for wall or cabinet mounting
  • Compact Bookcase design
  • IP.20 protection
  • Wall & panel mounting options above 7.5kW
  • Integral Operator Keypad controls with option of remote mounting
  • Simple set-up and operation
  • RFI filters fitted as standard
  • CE, UL and cUL listed

Power Ratings

Order Code * High Overload
150% O/load for 30secs		 * Low Overload
110% O/load for 30secs		 Dimensions
WxHxD mm
  kW Amps kW Amps
Power Supply: 220-240Vac (±10%) 50Hz (±5%) 1phase
650V-21115010- 0.25 1.5     73x 132 x 142
650V-21122010- 0.37 2.2     73x 132 x 142
650V-21130010- 0.55 3     73x 132 x 142
650V-21140010- 0.75 4     73x 132 x 142
650V-21155020- 1.1 5.5     73x 188 x 173
650V-21170020- 1.5 7     73x 188 x 173
PowerSupply: 380-460Vac (±10%) 50Hz (±5%) 3phase
650V-43115020- 0.37 1.5     73x 188 x 173
650V-43120020- 0.55 2     73x 188 x 173
650V-43125020- 0.75 2.5     73x 188 x 173
650V-43135020- 1.1 3.5     73x 188 x 173
650V-43145020- 1.5 4.5     73x 188 x 173
650V-43155020- 2.2 5.5     73x 188 x 173
650V-43168030- 3.0 6.8     96x 242 x 200
650V-43190030- 4.0 9     96x 242 x 200
650V-43212030- 5.5 12     96x 242 x 200
650V-43216030- 7.5 16     96x 242 x 200
650V-432160C0- 7.5 16 11 23 201x 348 x 208
650V-432230C0- 11 23 15 30 201x 348 x 208
650V-432300C0- 15 30 18 38 201x 348 x 208
650V-432380D0- 18 38 22 45 252x 453 x 245
650V-432450D0- 22 45 30 59 252x 453 x 245
650V-432590D0- 30 59 37 73 252x 453 x 245
650V-432730E0- 37 73 45 87 257x 669 x 312
650V-432870E0- 45 87 55 105 257x 669 x 312
650V-433105F1- 55 105 75 145 257x 720 x 355
650V-433145F1- 75 145 90 165 257x 720 x 355
650V-433180F1 90 180 110 205 257x 720 x 355
