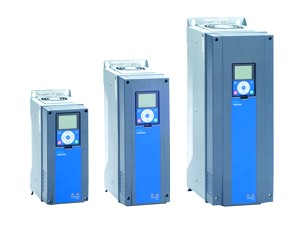

Vacon 100 HVAC
The Vacon100 HVAC is an AC drive dedicated to heating, ventilation and air conditioning in the power range of 0.55-160 kW for supply voltages of 208-480V.
The Vacon 100 HVAC is suitable for pump, fan and compressor applications.
Key Features
- Enclosure classes IP21 and IP54
- EMC harmonics: EN 61000-3-12 compliant
- EMC radio frequencies: EN 61800-3 Category C2 built in. Complies with radiated and conducted emissions
- RoHS compliant, no electrolytic capacitors, no lead in the circuit boards
- Intelligent cooling arrangement: Control and power airflow separated
Ratings & Dimensions
Supply: 380-480Volt 3-phase 50/60Hz
| Type |
Low OverLoad (1.1 x Amps)* |
Dimensions WxHxD mm |
| kW |
Amps |
| VACON0100-3L-0003-4-HVAC |
1.1 |
3.7 |
128 x 328 x 190 |
| VACON0100-3L-0004-4-HVAC |
1.5 |
4.8 |
128 x 328 x 190 |
| VACON0100-3L-0005-4-HVAC |
2.2 |
5.6 |
128 x 328 x 190 |
| VACON0100-3L-0008-4-HVAC |
3 |
8 |
128 x 328 x 190 |
| VACON0100-3L-0009-4-HVAC |
4 |
9.6 |
128 x 328 x 190 |
| VACON0100-3L-0012-4-HVAC |
5.5 |
12 |
128 x 328 x 190 |
| VACON0100-3L-0016-4-HVAC |
7.5 |
16 |
144 x 419 x 214 |
| VACON0100-3L-0023-4-HVAC |
11 |
23 |
144 x 419 x 214 |
| VACON0100-3L-0031-4-HVAC |
15 |
31 |
144 x 410 x 214 |
| VACON0100-3L-0038-4-HVAC |
18.5 |
38 |
195 x 557 x 229 |
| VACON0100-3L-0046-4-HVAC |
22 |
46 |
195 x 557 x 229 |
| VACON0100-3L-0061-4-HVAC |
30 |
61 |
195 x 557 x 229 |
| VACON0100-3L-0072-4-HVAC |
37 |
72 |
237 x 660 x 259 |
| VACON0100-3L-0087-4-HVAC |
45 |
87 |
237 x 660 x 259 |
| VACON0100-3L-0105-4-HVAC |
55 |
105 |
237 x 660 x 259 |
| VACON0100-3L-0140-4-HVAC |
75 |
140 |
290 x 966 x 343 |
| VACON0100-3L-0170-4-HVAC |
90 |
170 |
290 x 966 x 343 |
| VACON0100-3L-0205-4-HVAC |
110 |
205 |
290 x 966 x 343 |
| VACON0100-3L-0261-4-HVAC |
132 |
261 |
480 x 1150 x 365 |
| VACON0100-3L-0310-4-HVAC |
160 |
310 |
480 x 1150 x 365 |
