Vacon NXS

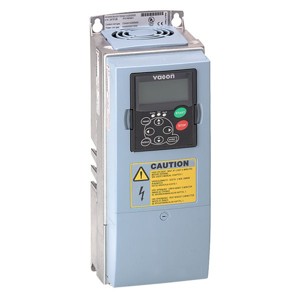

Vacon NXS drive

The Vacon NXS is a compact AC drive in the power range of 0.75 - 132kW and supply voltages of 380-500 V for heavy use in machines, buildings and all branches of industry.

The robust design incorporates effective protection against supply network disturbances. Trip-free operation is also guaranteed due to sophisticated motor control principles and motor/drive protection features, component selection and effective cooling.

The Start-Up Wizard and the standard All-In-One Application Package make parameter setting extremely easy in all cases, from simple to complex.

Key Features

  • Easy to use display panel (English language text display)
  • Start-Up Wizard
  • IP.21 & IP.54 protected units available
  • Integrated EMC filters and AC chokes
  • Suitable for both Wall or Enclosure mounting with all necessary components
  • High switching frequency, low noise
  • Steady state speed error < 1%
  • Low torque ripple
  • Starting torque > 200%, depending on AC drive sizing
  • Suitable for multi-motor applications
  • Range of comms options available

Ratings & Dimensions

380-500Volt 3ph Supply, EMC Level H

Type High OverLoad (1.5 x Amps)* Low OverLoad (1.1 x Amps)* Dimensions WxHxD mm Protection
kW Amps kW Amps
NXS00035A2H1SSSA1A3 0.75 2.2 1.1 3.3 128 x 292 x 190 IP.21
NXS00045A2H1SSSA1A3 1.1 3.3 1.5 4.3 128 x 292 x 190 IP.21
NXS00055A2H1SSSA1A3 1.5 4.3 2.2 5.6 128 x 292 x 190 IP.21
NXS00075A2H1SSSA1A3 2.2 5.6 3 7.6 128 x 292 x 190 IP.21
NXS00095A2H1SSSA1A3 3 7.6 4 9 128 x 292 x 190 IP.21
NXS00125A2H1SSSA1A3 4 9 5.5 12 128 x 292 x 190 IP.21
NXS00165A2H1SSSA1A3 5.5 12 7.5 16 144 x 391 x 214 IP.21
NXS00225A2H1SSSA1A3 7.5 16 11 23 144 x 391 x 214 IP.21
NXS00315A2H1SSSA1A3 11 23 15 31 144 x 391 x 214 IP.21
NXS00385A2H1SSSA1A3 15 31 18.5 38 195 x 519 x 237 IP.21
NXS00455A2H1SSSA1A3 18.5 38 22 46 195 x 519 x 237 IP.21
NXS00615A2H1SSSA1A3 22 46 30 61 195 x 519 x 237 IP.21
NXS00725A2H0SSSA1A3 30 61 37 72 237 x 591 x 257 IP.21
NXS00875A2H0SSSA1A3 37 72 45 87 237 x 591 x 257 IP.21
NXS01055A2H0SSSA1A3 45 87 55 105 237 x 591 x 257 IP.21
NXS01405A2H0SSSA1A3 55 105 75 140 291 x 758 x 344 IP.21
NXS01685A2H0SSSA1A3 75 140 90 170 291 x 758 x 344 IP.21
NXS02055A2H0SSSA1A3 90 170 110 205 291 x 758 x 344 IP.21
NXS02615A2H0SSFA1A3 110 205 132 261 480 x 1150 x 362 IP.21
NXS03005A2H0SSFA1A3 132 245 160 300 480 x 1150 x 362 IP.21
NXS00035A5H1SSSA1A3 0.75 2.2 1.1 3.3 128 x 292 x 190 IP.54
NXS00045A5H1SSSA1A3 1.1 3.3 1.5 4.3 128 x 292 x 190 IP.54
NXS00055A5H1SSSA1A3 1.5 4.3 2.2 5.6 128 x 292 x 190 IP.54
NXS00075A5H1SSSA1A3 2.2 5.6 3 7.6 128 x 292 x 190 IP.54
NXS00095A5H1SSSA1A3 3 7.6 4 9 128 x 292 x 190 IP.54
NXS00125A5H1SSSA1A3 4 9 5.5 12 128 x 292 x 190 IP.54
NXS00165A5H1SSSA1A3 5.5 12 7.5 16 144 x 391 x 214 IP.54
NXS00225A5H1SSSA1A3 7.5 16 11 23 144 x 391 x 214 IP.54
NXS00315A5H1SSSA1A3 11 23 15 31 144 x 391 x 214 IP.54
NXS00385A5H1SSSA1A3 15 31 18.5 38 195 x 519 x 237 IP.54
NXS00455A5H1SSSA1A3 18.5 38 22 46 195 x 519 x 237 IP.54
NXS00615A5H1SSSA1A3 22 46 30 61 195 x 519 x 237 IP.54
NXS00725A5H0SSSA1A3 30 61 37 72 237 x 591 x 257 IP.54
NXS00875A5H0SSSA1A3 37 72 45 87 237 x 591 x 257 IP.54
NXS01055A5H0SSSA1A3 45 87 55 105 237 x 591 x 257 IP.54
NXS01405A5H0SSSA1A3 55 105 75 140 291 x 758 x 344 IP.54
NXS01685A5H0SSSA1A3 75 140 90 170 291 x 758 x 344 IP.54
NXS02055A5H0SSSA1A3 90 170 110 205 291 x 758 x 344 IP.54
NXS02615A5H0SSFA1A3 110 205 132 261 480 x 1150 x 362 IP.54
NXS03005A5H0SSFA1A3 132 245 160 300 480 x 1150 x 362 IP.54

*kW and Amps at 400Volts
