Parker SSD AC690+ Series

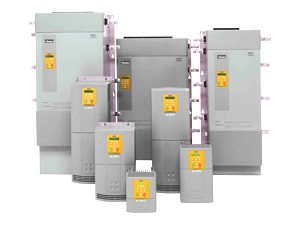

The AC690+ series is a single range of ac drives designed to meet the needs of most variable speed applications from simple single motor applications up to integrated multi-drive systems.
The drives are available in ratings from 0.37kW to 1000Kw and have a host of control options that allow them to be tailored to meet exact requirements.
The AC690+ is an Open Loop (V/F), Sensorless Vector and Closed Loop Vector in one drive.
Key Features
- Units suitable for wall or cabinet mounting
- IP.20 protection
- Integral Operator Keypad controls with option of remote mounting
- Quick set-up menu
- RFI filters fitted as standard
- Option Cards for most used comms
- Encoder feedback Option Card
- Function Block programming
- Add-on Systems Integration module for more advanced applications
Ratings
| Order Code |
Constant Torque 150% O/load for 60secs |
Constant Torque 115% O/load for 10secs |
Inductance |
Braking Modules |
Frame |
| Power kW |
Amps |
Power kW |
Amps |
| Power Supply: 380-460Vac (±10%) 3phase 50/60Hz |
| 690-431250B0-B… |
0.75 |
2.5 |
|
|
N/A |
Standard |
B |
| 690-431450B0-B… |
1.5 |
4.5 |
|
|
B |
| 690-431550B0-B… |
2.2 |
5.5 |
|
|
B |
| 690-431950B0-B… |
4 |
9.5 |
|
|
B |
| 690-432120B0-B… |
5.5 |
12 |
|
|
B |
| 690-432120C0-B… |
5.5 |
12 |
|
|
Standard - Internal Inductance DC Bus |
C |
| 690-432140B0-B… |
6 |
14 |
|
|
B |
| 690-432160C0-B… |
7.5 |
16 |
11 |
23 |
C |
| 690-432230C0-B… |
11 |
23 |
15 |
31(UL=27) |
C |
| 690-432300C0-B… |
15 |
31 |
18.5 |
38 |
C |
| 690-432310D0-… |
15 |
31 |
18.5 |
38 |
Option |
D |
| 690-432380D0-… |
18.5 |
38 |
22 |
45 |
D |
| 690-432450D0-… |
22 |
45 |
30 |
59(UL=52) |
D |
| 690-432590D0-… |
30 |
59 |
37 |
73 |
D |
| 690-432590E0-… |
30 |
59 |
37 |
73 |
Standard - Internal 3phase Inductance |
E |
| 690-432730E0-… |
37 |
73 |
45 |
87 |
E |
| 690-432870E0-… |
45 |
87 |
55 |
105 |
E |
| 690-433105F2-… |
55 |
105 |
75 |
145 |
F |
| 690-433145F2-… |
75 |
145 |
90 |
165 |
F |
| 690-433180F2-… |
90 |
180 |
110 |
205 |
G |
| 690-433216G2-… |
110 |
216 |
132 |
260 |
External
Inductance |
G |
| 690-433250G2-… |
132 |
250 |
150 |
302 |
G |
| 690-433316G2-… |
160 |
316 |
180 |
361 |
G |
| 690-433361G2-… |
180 |
361 |
220 |
420 |
G |
| 690-433375H2-… |
200 |
375 |
250 |
480 |
H |
| 690-433420H2-… |
220 |
420 |
250 |
480 |
H |
| 690-433480H2-… |
250 |
480 |
300 |
545 |
H |
| 690-433520H2-… |
280 |
520 |
315 |
590 |
H |
| 690-433590J2-… |
315 |
590 |
355 |
650 |
J |
