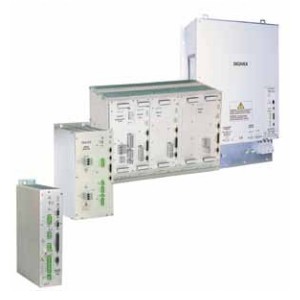

DIGIVEX drives are available for power range from 0.37kW to 120kW and for 230V and 400V power supply.

Dedicated to the torque or speed control of axis or spindle brushless motors, DIGIVEX drive can be delivered in single-axis or multi-axis format.

Key Features

  • Direct 230Vac and 400Vac power supply
  • Single-axis or multi-axes version
  • Integrated resistor or regenerative braking
  • High resolution analogue input
  • Integrated filters and feed forward
  • Complete integrated monitoring with Parvex Motion Explorer

Range

Type Output current Structure Control
DSD 2 to 60A Single-axis Speed
DMD 2 to 32A Mutli-axis Speed
DPD 50 to 300A Single-axis Speed

Technical Specifications

Power supply 230Vac ±10%, single phase or three phase, 400Vac ±10%, three phase; 50/60Hz
Ambient 0-40°C (derate by 20% per 10°C to 60°C max).
Altitude 1000m (derate by 1% per 100m to 4000m max.)
Braking DSD: Integrated or external resistor
DMD: Integrated or external resistor or regenerative
DPD: Regenerative
Inputs/outputs 2- Analogue inputs (16 bits and 10 bits; ±10V diff.)
2- Analogue outputs (±10V), free assignment
4- Opto-isolated digital inputs
3- Opto-isolated digital outputs
Resolver input
Incremental encoder emulation output; SSI; SinCos
230Vac or 400Vac auxiliary input

Dimensions

Type H (mm) W (mm) D (mm)
DSD rating
2,4 and 7,5 A 328 78 222
8 and 15 A 328 109.5 222
16 A 328 133 222
30 A 328 133 226
32 A 328 168 226
60 A 328 168 235
DMD rack
DRA3165 - 3 axes 303 315 270
DRA3168 - 6 axes 303 483 270
DRA3128 - 13 axes 597 483 271
DPD rating
50 A 438 202 244
100 and 150 A 474 483 343
200 A and 300 A 878 540 343
