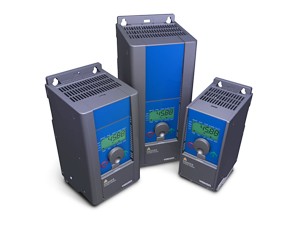

Vacon 10
The Vacon 10 is one of the smallest drives in the market today. The size of the drive saves valuable installation space.
Despite the small size, the drive is packed with features such as integrated EMC filters, intelligent navigation and flexible customer interface.
The Vacon 10 will satisfy a wide variety of needs with few modifications.
Key Features
- Simple menu navigation
- Small physical size
- DIN rail and screw mountable
- Side by side installation
- Parameter copying without the need for a mains power supply
- Integrated EMC filter makes the unit suitable for commercial and industrial networks
- Built-in PI controller
- Temperature-controlled fan
- RS-485/Modbus as standard
Ratings & Dimensions
208 - 240Volt 1ph Supply, EMC Level 2
| Type |
kW |
Amps |
Dimensions WxHxD mm |
Protection |
| VACON 0010-1L-0001-2 |
0.25 |
1.7 |
66 x 160 x 99 |
IP.20 |
| VACON 0010-1L-0002-2 |
0.37 |
2.4 |
66 x 160 x 99 |
IP.20 |
| VACON 0010-1L-0003-2 |
0.55 |
2.8 |
66 x 160 x 99 |
IP.20 |
| VACON 0010-1L-0004-2 |
0.75 |
3.7 |
90 x 195 x 102 |
IP.20 |
| VACON 0010-1L-0005-2 |
1.1 |
4.8 |
90 x 195 x 102 |
IP.20 |
| VACON 0010-1L-0007-2 |
1.5 |
7 |
90 x 195 x 102 |
IP.20 |
| VACON 0010-1L-0009-2 |
2.2 |
9.6 |
100 x 255 x 109 |
IP.20 |
380 - 480Volt 3ph Supply, EMC Level 2
| Type |
kW |
Amps |
Dimensions WxHxD mm |
Protection |
| VACON 0010-3L-0001-4 |
0.37 |
1.3 |
66 x 160 x 99 |
IP.20 |
| VACON 0010-3L-0002-4 |
0.55 |
1.9 |
66 x 160 x 99 |
IP.20 |
| VACON 0010-3L-0003-4 |
0.75 |
2.4 |
66 x 160 x 99 |
IP.20 |
| VACON 0010-3L-0004-4 |
1.1 |
3.3 |
90 x 195 x 102 |
IP.20 |
| VACON 0010-3L-0005-4 |
1.5 |
4.3 |
90 x 195 x 102 |
IP.20 |
| VACON-0010-3L-0006-4 |
2.2 |
5.6 |
90 x 195 x 102 |
IP.20 |
| VACON-0010-3L-0008-4 |
3 |
7.6 |
100 x 255 x 109 |
IP.20 |
| VACON-0010-3L-0009-4 |
4 |
9 |
100 x 255 x 109 |
IP.20 |
| VACON-0010-3L-0012-4 |
5.5 |
12 |
100 x 255 x 109 |
IP.20 |
