Vacon 100X

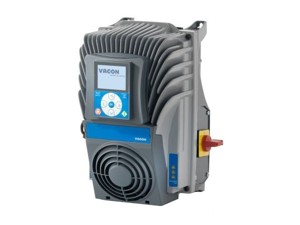

Vacon 100X drive

The Vacon 100X drive is a Motor Mountable drive that is also suitable for wall mounting. It is a tough drive (IP.66 protected) for applications requiring a control as smooth as silk and it is not tied to being used on a specific manufacturers' induction motor. With high advanced control capability and built-in harmonic filtering chokes, it is the ideal solution for a large variety of applications.

The robust die-cast frame and the large and open cooling ribs are the perfect starting point for designing a drive for demanding applications.

Powerful control with advanced motor control functionality, extensive I/O and numerous control options make the Vacon 100X Motor Mountable drive ideal for demanding tasks. Thanks to the built-in PLC functionality, it is possible to create customer-specific software solutions without any extra hardware costs. The powers range from 1.1 up to 30 kW.

Ratings & Dimensions

380-480Volt 3-phase 50/60Hz

Type High OverLoad (1.5 x Amps)* Dimensions WxHxD mm
kW Amps
VACON0100-3L-0003-4-X 1.1 3.4 191 x 314 x 187
VACON0100-3L-0004-4-X 1.5 4.8 191 x 314 x 187
VACON0100-3L-0005-4-X 2.2 5.6 191 x 314 x 187
VACON0100-3L-0008-4-X 3 8 191 x 314 x 187
VACON0100-3L-0009-4-X 4 9.6 191 x 314 x 187
VACON0100-3L-0012-4-X 5.5 12 191 x 314 x 187
VACON0100-3L-0016-4-X 7.5 16 233 x 366 x 205
VACON0100-3L-0023-4-X 11 23 233 x 366 x 205
VACON0100-3L-0031-4-X 15 31 233 x 366 x 205
VACON0100-3L-0038-4-X 18.5 38 314 x 489 x 225
VACON0100-3L-0046-4-X 22 46 314 x 489 x 225
VACON0100-3L-0061-4-X 30 61 314 x 489 x 225

*kW and Amps at 400Volts
