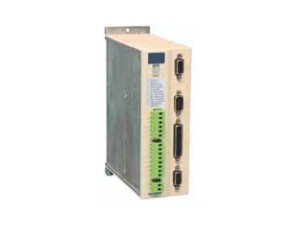

DLD is specifically developed for low power applications where optimum quality of control and very compact design are needed.

Combined with NX servo motors, they offer a powerful and economical servo system solution.

Key Features

  • Direct 230 Vac power supply
  • Integrated EMC filter
  • Integrated braking resistor
  • High compacity
  • 7-seg LCD display
  • Easy parameter setting with Parvex Motion Explorer

Technical Specifications

Power supply Temperature Altitude Braking
230Vac ±10%, single or three phase; 50/60Hz 0-40°C (derate by 20% per 10°C to 1000m (derate by 1% per 100m to 4000m max.) Integrated resistor, connection of DC bus

Electrical Specifications

Type Output current continuous (A) Output current peak (A) Mechanical power (W)
DLD - 230 V single phase 50/60 Hz
DLD13M02R 2 4 375
DLD13M04R 4 8 750
DLD - 230 V three phase 50/60 Hz
DLD13002R 2 4 375
DLD13004R 4 8 750
DLD13007R 7.5 15 1500

Inputs/Outputs

  • 2- Analogue inputs (14 bits and 10 bits ; ±10V diff.)
  • 2- Analogue outputs (±10V), free assignment
  • 5- Opto-isolated digital inputs
  • 3- Opto-isolated digital outputs
  • Resolver input
  • 230Vac auxiliary input
  • Incremental encoder emulation output

Dimensions

Type Height (mm) Width (mm) Depth (mm) Weight (kg)
DLD 195 60 161 1.3
