Parker SSD 506 / 507 / 508 Series (1Q)

Parker 506 / 507 / 508 Series (1Q)

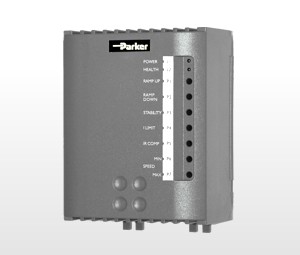

The 506, 507 and 508 series drives break new ground in cost-effective DC motor control. Available in 3, 6 or 12 A armature ratings, the feature packed minimum footprint design is ideal for speed or torque control of permanent magnet or shunt wound DC motors fed from single phase supplies.

Typical applications include:

  • Conveyors, Basic speed control
  • Packaging machinery

Features

  • Low cost high featured design
  • IP20 protected covers
  • Compact footprint and DIN rail mounting
  • Selectable 110 VAC or 230 VAC supply
  • Selectable tacho or armature voltage feedback

Standards

  • CE Marked to EN50178 (Safety, Low Voltage Directive)
  • CE Marked to EN61800-3 (EMC Directive) with external filter
  • NRTL Listed to US Standard UL508C
  • NRTL listed to Canadian standard C22.2#14

Dimensions

Type A B C Weight (kg)
506 80 105 140 0.59
507 80 105 140 0.59
508 90 105 140 0.7

Technical Characteristics

Supply voltage 110...120 VAC, or 220...240 VAC ±10 % single phase 50...60 Hz ±5 %
Ambient 0...45 °C, Altitude 1000 m
Installation/diagnostics
Environment IP20 Protection
Mounting DIN rail
Control Speed or torque
Output 2 A VDC field control
Detection 15 s stall detect
Protection Electronic overcurrent protection
Signal Drive healthy and zero speed
Inputs Main and trim setpoint inputs
Ramps Independent acceleration and deceleration ramps
Diagnostics Via LED
Potentiometer adjustments
Speed maximum / minimum
Current limit
Speed stability
Time acceleration (1...15 s)
deceleration (1...15 s)
IR compensation
Switch selectable
Supply voltage 110/120 VAC or 220/240 VAC
Speed Feedback Tachogenerator / armature voltage feedback
Calibration Speed and Current
Order Code Armature Current
[ADC]		 Supply Voltage
[VAC]		 Armature Voltage
[VDC]		 Field Voltage
[VDC]
506-00-20-00 0...3 110...120 90 100
0...3 220...240 180 210
507-00-20-00 0...6 110...120 90 100
0...6 220...240 180 210
508-00-20-00 0...12 110...120 90 100
0...12 220...240 180 210
