Parker SSD 512 Series (2Q)

Parker 512 Series (2Q)

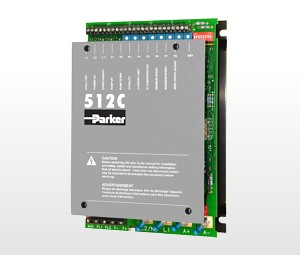

Isolated control circuitry, a host of user facilities and extremely linear control loop make the 512C ideal for single motor or multi-drive low power applications. Designed for use on single phase supplies, the 512C is suitable for controlling permanent magnet or field wound DC motors in speed or torque control.

Typical applications include

  • Centrifugal fans and pumps
  • Extruders and mixers
  • Small paper converting machines

Features

  • Fully isolated control circuits
  • 110 V ... 415 V supply selection by jumpers
  • CE marked and EMC compliant
  • Multiple input speed and current setpoints
  • Zero speed and drive healthy outputs
  • Extremely linear control loops

Standards

  • CE Marked to EN50178 (Safety, Low Voltage Directive)
  • CE Marked to EN61800-3 (EMC Directive) with external filter
  • NRTL Listed to US Standard UL508C
  • NRTL listed to Canadian standard C22.2#14

Dimensions

Type A B C D E Weight (kg)
512C-04, -08 or -16 160 240 85 148 210 1.5/1.6/1.6
512C-32 160 240 123 148 210 2.9

Technical Characteristics

Supply Voltage 110...115 V, 220...240 V or 380...415 V
±10 %; 50...60 Hz ±5 %; single phase; selection by switch
Ambient 0...40°C, Altitude max 1000 m
Overload 150 % for 60 s
Installation/diagnostics
Voltage selection Jumper selection of supply voltage
Control Speed or torque
Output 3A DC field control
Diagnostics Power on, stall detect and overcurrent LED
Protection Electronic overcurrent protection
Speed output Buffered 10 V, 10 mA
Current output Buffered 7.5 V, 10 mA
Ramp output Buffered (master/slave)
Reference supply 10 Vcc (10 mA)
Inputs Total setpoint Off
Drive Outputs Drive Healthy
Output speed / setpoin Zero Speed / zero setpoint
Potentiometer adjustments
Speed maximum / minimum
Current Limit
Speed stability
Time acceleration (1...15 s)
deceleration (1...15 s)
IR Compensation
