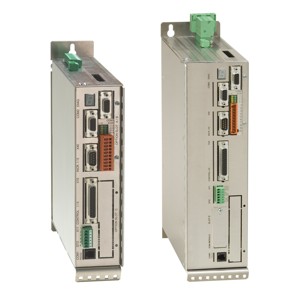

Parker 638 Series

Parker 638 Series

638 series servo drives are suitable for all servo applications, from simple speed or current control to most complex positioning applications.

The processor of 638 series servo drives gives a rapid response time to the control circuits of 105 μs. Numerous expansion slots allow 638 series servo drives to reach a high degree of versatility, opening access to a wide variety of fieldbus communication and feedback sensors options.

Key Features

  • Integrated motion controller
  • 230 or 400 VAC direct power supply
  • STO: Safety torque off in accordance with EN13489-1 Category 3, Performance Level d and EN1037 as standard
  • Ultra-fast control loops (105 µs)
  • Embedded PLC functions
  • Programmable electronic cam
  • 3 configurable trajectory generators
  • Multi-axis synchronization through process bus
  • Numerous fieldbuses options
  • Hiperface and SSI encoder inputs options
  • Optional flash memory chip for data storage
  • Simple commissioning and programming software

Technical Characteristics

Supply voltage 1*230 VAC (±10 %), 50 - 60 Hz
3*230 VAC (±10 %), 50 - 60 Hz
3*400/480 VAC (±10 %), 50 - 60 Hz
Permanent current [Arms] 1...15
Peak current [A] 2...30
Overload 200 % during 5 s
Operating temperature 0...40 °C
Humidity < 85 % relative humidity non-condensing
Altitude 1000 m (1 % derating per 100 m up to 4000 m)
Product enclosure rating IP20
