Parker SSD AC10 Series (IP.66)

Parker AC10 Series (IP.66)

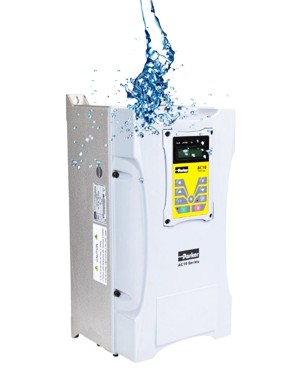

The AC10 series compact drive in IP.66 protected enclosure enables use in more robust indoor and outdoor environments such as wash-down areas in food and beverage industries. It provides a low-cost solution for simple induction motor control up to 15kW in IP.66 protection.

Auto tuning sensorless vector mode provides improved dynamic speed or torque control to benefit from the drives enhanced 0.5% speed and 5% torque accuracy.

Key Features

  • Optional clone module to upload and download parameters
  • RS232/RS485/Modbus comms interfaces
  • 0-40 deg.C operating temperature
  • 150% Overload for 60secs
  • Optional Internal EMC filter for C3 industrial environments
  • Conformal coating provides protection for class C3 environments
  • Assignable digital I/O and relay output
  • Analogue I/O for connection to speed potentiometers, and panel meters
  • Internal Brake switch as standard

IP.66 Power Ratings

Order Code Nominal Power Output Current (Amps) Dimensions WxHxD mm
PowerSupply: 230Vac 1phase
16G-11-0025- 0.4 2.5 200x 412 x 198
16G-11-0045- 0.75 4.5 200x 412 x 198
16G-11-0070- 1.5 7 200x 412 x 198
16G-11-0100- 2.2 10 200x 412 x 198
Power Supply 400 Vac 3 phase
16G-41-0020- 0.75 2 200x 412 x 198
16G-41-0040- 1.5 4 200x 412 x 198
16G-41-0070- 3 7 200x 412 x 198
16G-41-0090- 4 9 200x 412 x 198
16G-42-0120- 5.5 12 242x 418 x 198
16G-42-0170- 7.5 17 242x 418 x 198
16G-43-0230- 11 23 242x 471 x 228
16G-43-0320- 15 32 242x 471 x 228
