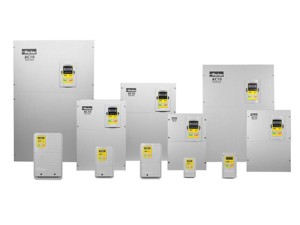

Parker SSD AC10 Series (IP.20)
The AC10 series compact drive is one of the smallest V/Hz (sensorless vector) variable speed micro drives available. It provides a low-cost solution for simple induction motor control up to 180kW in IP.20 protection and 15kW in IP.66 protection.
Auto tuning sensorless vector mode provides improved dynamic speed or torque control to benefit from the drives enhanced 0.5% speed and 5% torque accuracy.
Key Features
- Operator keypad as standard
- Optional keypad for remote mounting
- Optional clone module to upload and download parameters
- RS232/RS485/Modbus comms interfaces
- 0-40 deg.C operating temperature
- 150% Overload for 60secs
- Optional Internal EMC filter for C3 industrial environments
- Conformal coating provides protection for class C3 environments
- Assignable digital I/O and relay output
- Analogue I/O for connection to speed potentiometers, and panel meters
- Internal Brake switch as standard
IP.20 Power Ratings
| Order Code |
Nominal Power |
Output Current (Amps) |
Dimensions WxHxD mm |
| Power Supply: 230Vac 1 phase |
| 10G-11-0015- |
0.2 |
1.5 |
80x 138 x 135 |
| 10G-11-0025- |
0.4 |
2.5 |
80x 138 x 135 |
| 10G-11-0035- |
0.55 |
3.5 |
80x 138 x 135 |
| 10G-11-0045- |
0.75 |
4.5 |
80x 138 x 135 |
| 10G-12-0050- |
1.1 |
5 |
106x 180 x 150 |
| 10G-12-0070- |
1.5 |
7 |
106x 180 x 150 |
| 10G-12-0100- |
2.2 |
10 |
106x 180 x 150 |
| Power Supply 400 Vac 3 phase |
| 10G-41-0006- |
0.2 |
0.6 |
80x 138 x 135 |
| 10G-41-0010- |
0.4 |
1 |
80x 138 x 135 |
| 10G-41-0015- |
0.55 |
1.5 |
80x 138 x 135 |
| 10G-42-0020- |
0.75 |
2 |
106x 180 x 150 |
| 10G-42-0030- |
1.1 |
3 |
106x 180 x 150 |
| 10G-42-0040- |
1.5 |
4 |
106x 180 x 150 |
| 10G-42-0065- |
2.2 |
6.5 |
106x 180 x 150 |
| 10G-43-0080- |
3 |
8 |
138x 235 x 152 |
| 10G-43-0090- |
4 |
9 |
138x 235 x 152 |
| 10G-43-0120- |
5.5 |
12 |
138x 235 x 152 |
| 10G-44-0170- |
7.5 |
17 |
156x 265 x 170 |
| 10G-44-0230- |
11 |
23 |
156x 265 x 170 |
| 10G-45-0320- |
15 |
32 |
205x 340 x 196 |
| 10G-45-0380- |
18.5 |
38 |
205x 340 x 196 |
| 10G-45-0440- |
22 |
44 |
205x 340 x 196 |
| 10G-46-0600- |
30 |
60 |
265x 435 x 235 |
| 10G-47-0750- |
37 |
75 |
315x 480 x 234 |
| 10G-47-0900- |
45 |
90 |
315x 480 x 234 |
| 10G-48-1100- |
55 |
110 |
360x 555 x 265 |
| 10G-48-1500- |
75 |
150 |
360x 555 x 265 |
| 10G-49-1800- |
90 |
180 |
410x 630 x 300 |
| 10G-49-2200- |
110 |
220 |
410x 630 x 300 |
| 10G-410-2650- |
132 |
265 |
516x 765 x 326 |
| 10G-411-3200- |
160 |
320 |
560x 910 x 342 |
| 10G-411-3600- |
180 |
360 |
560x 910 x 342 |
